Miter Sled Plans

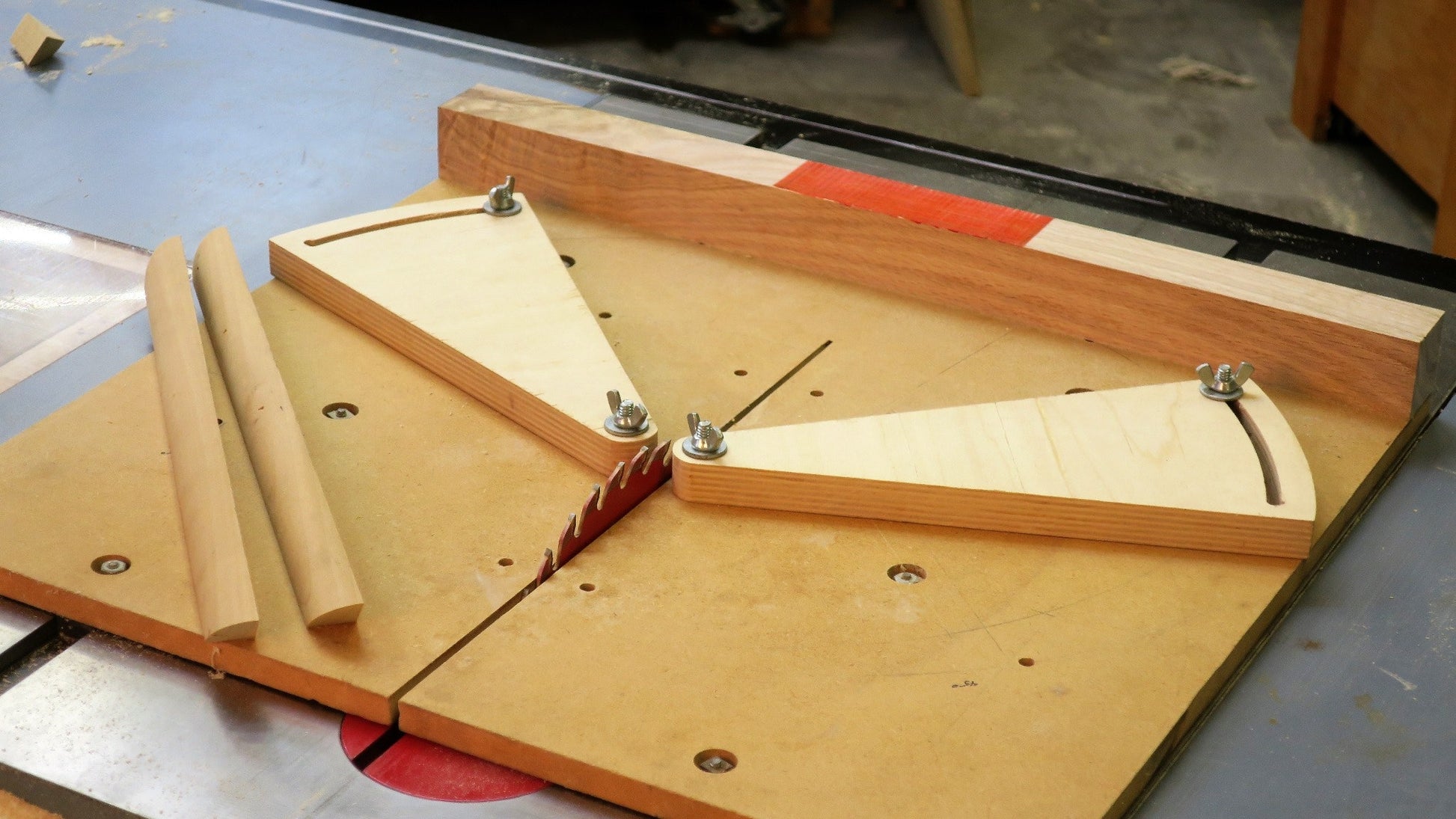

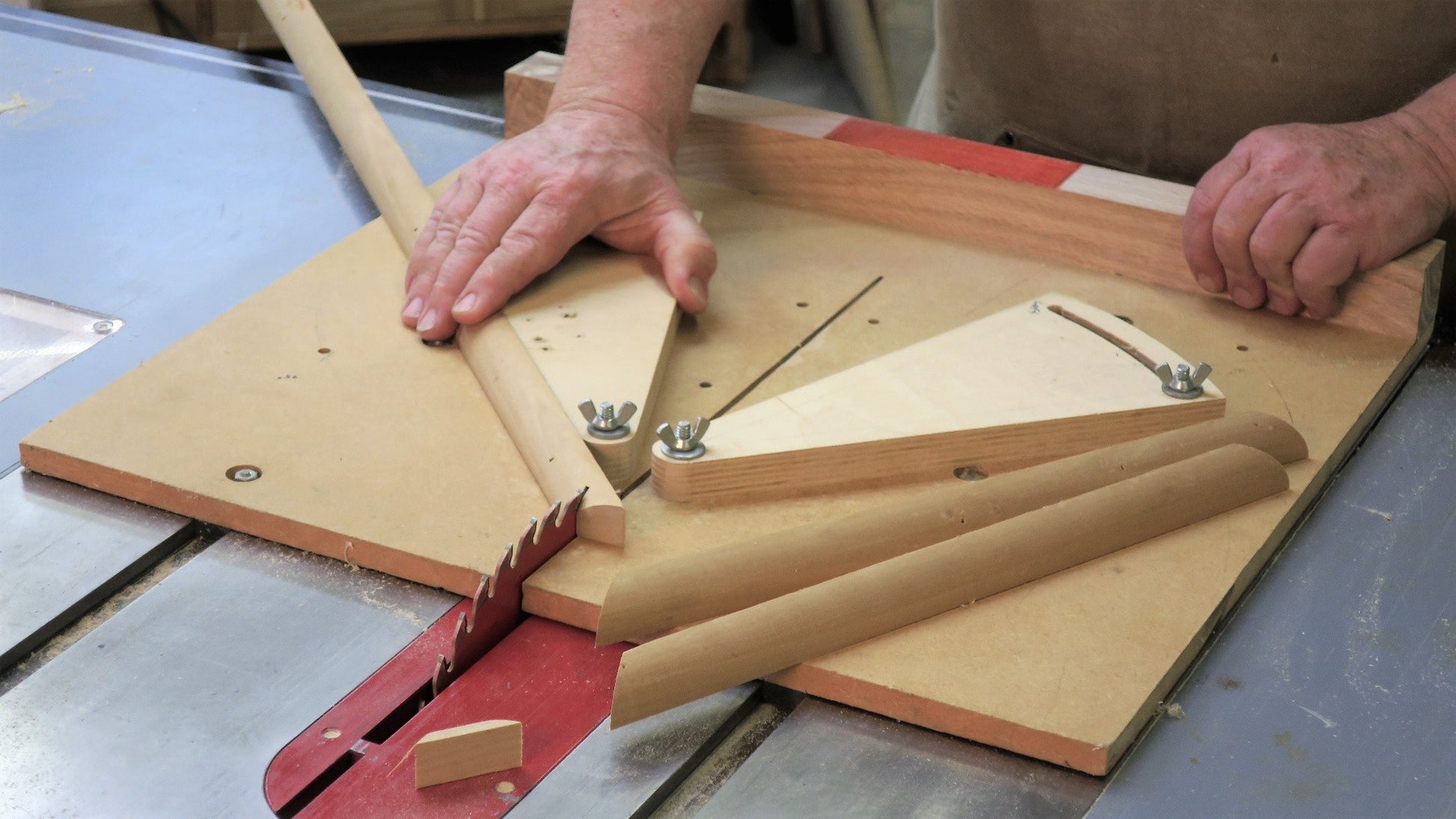

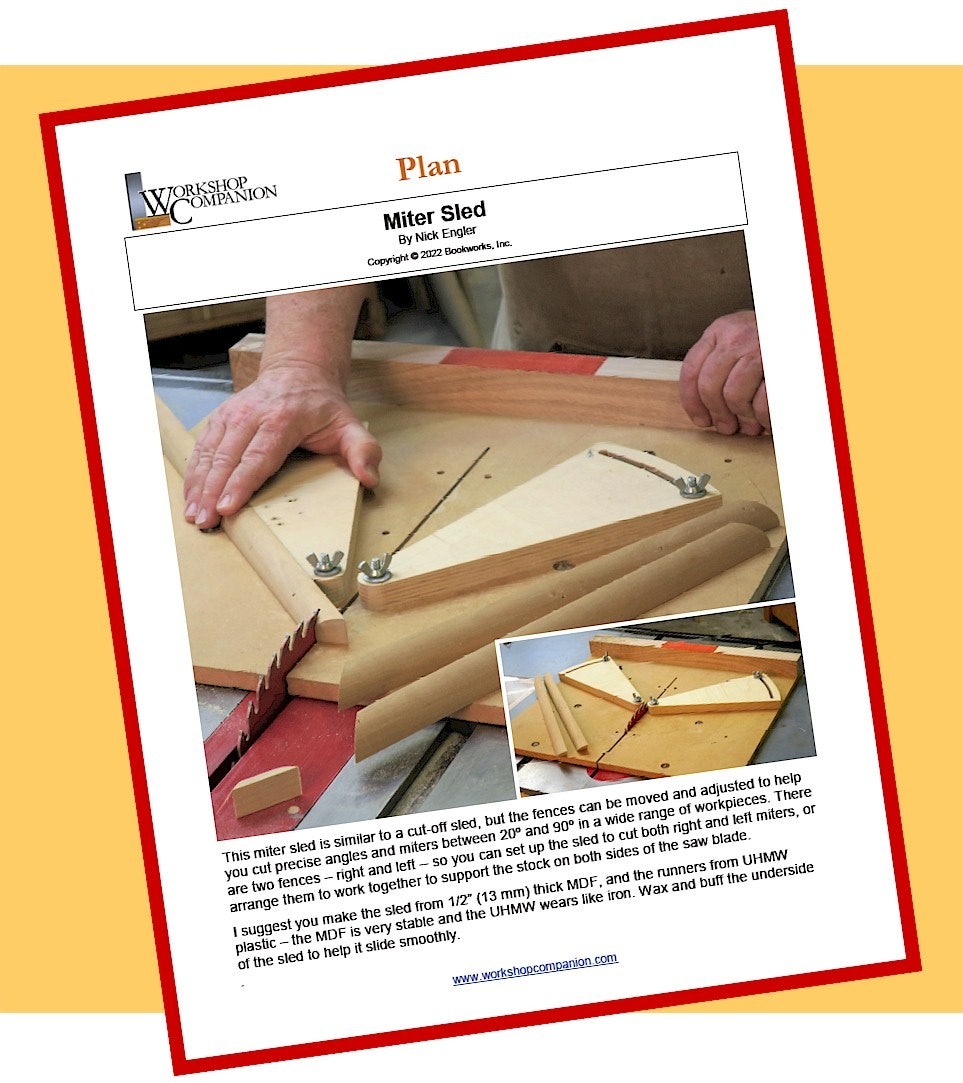

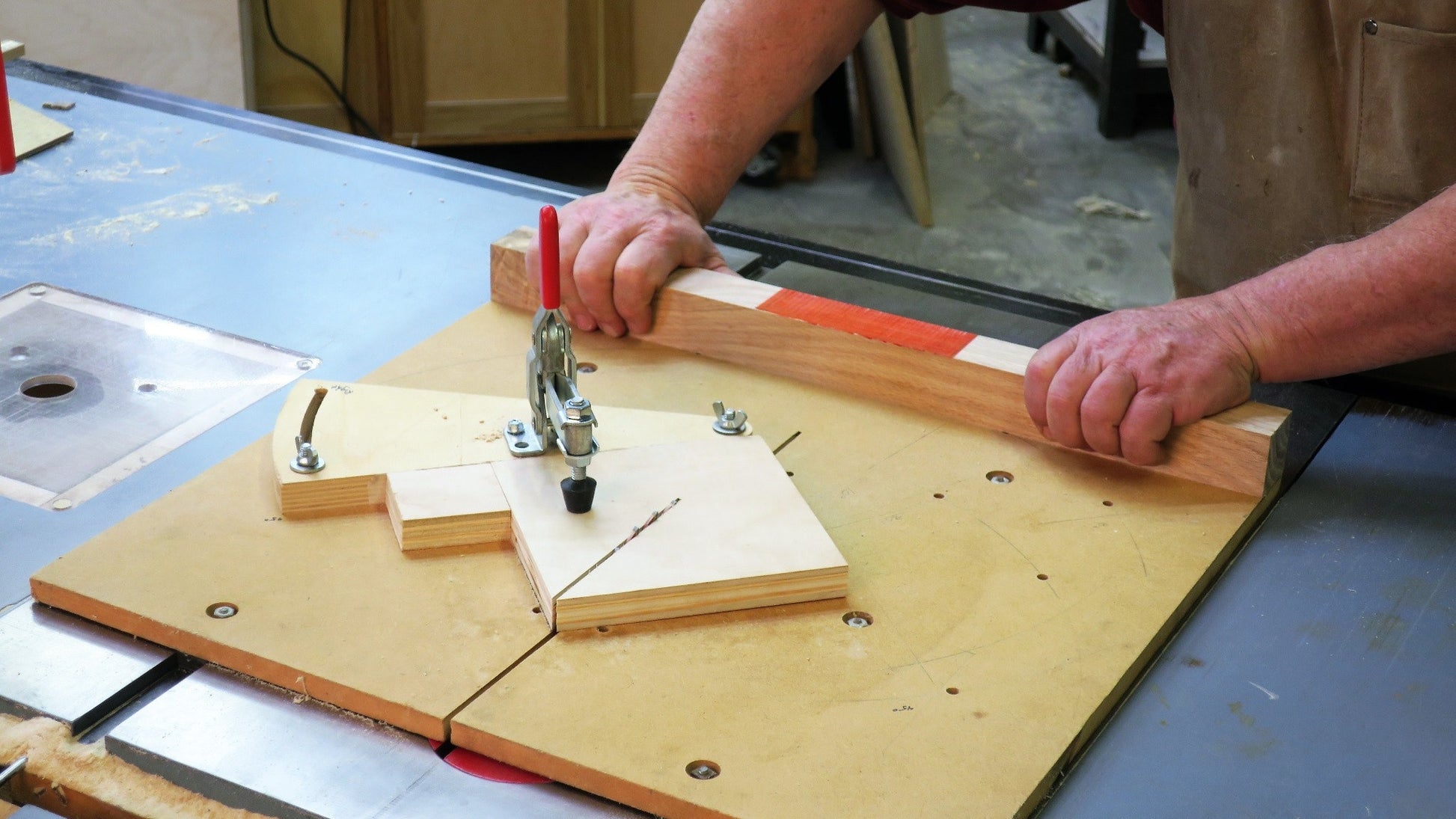

A miter sled is similar to a cut-off sled, but the fences can be moved and adjusted to help you cut precise angles and miters between 20º and 90º in a wide range of workpieces. Nick has designed this sled with two independent fences so you can set up the jig to cut both right and left miters. Additionally, each fence can be mounted in several locations on the sled to accommodate different sizes and shapes of workpieces. Or, you can arrange them to work together to support the stock on both sides of the saw blade. 4 pages in PDF format, including instructions and detailed drawings in BOTH English/Imperial and Metric measurements.
