Making Jigs and Fixtures

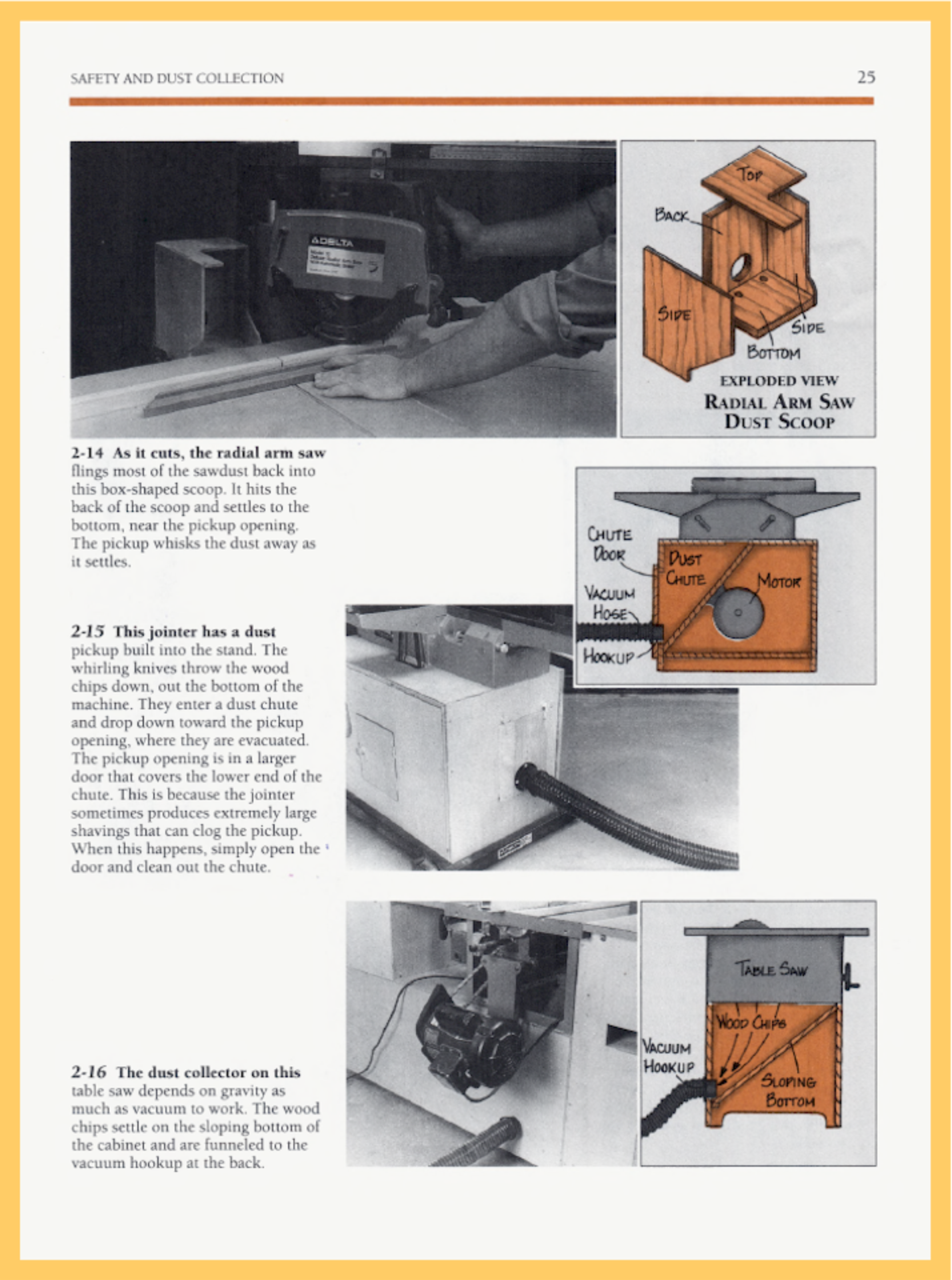

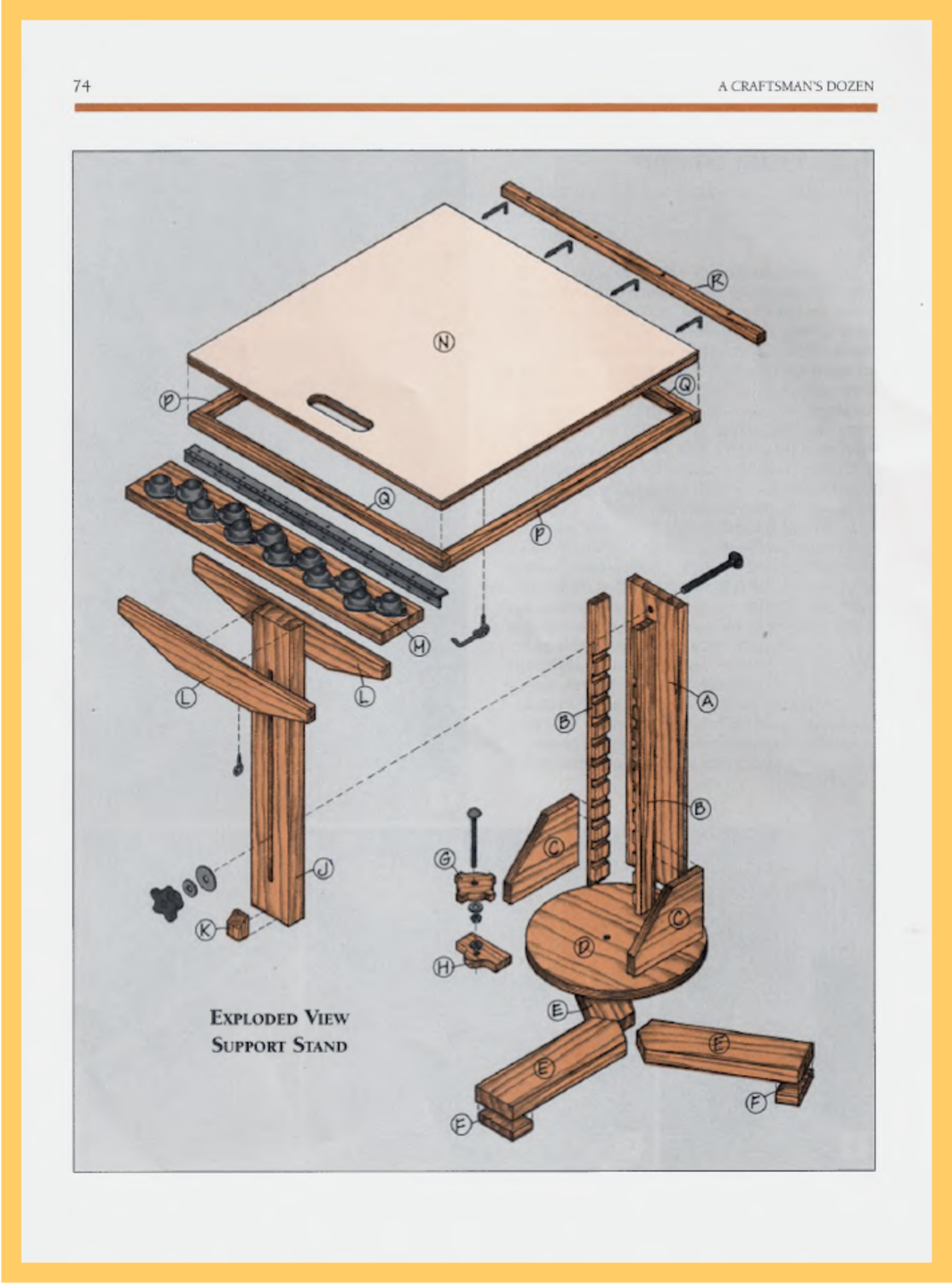

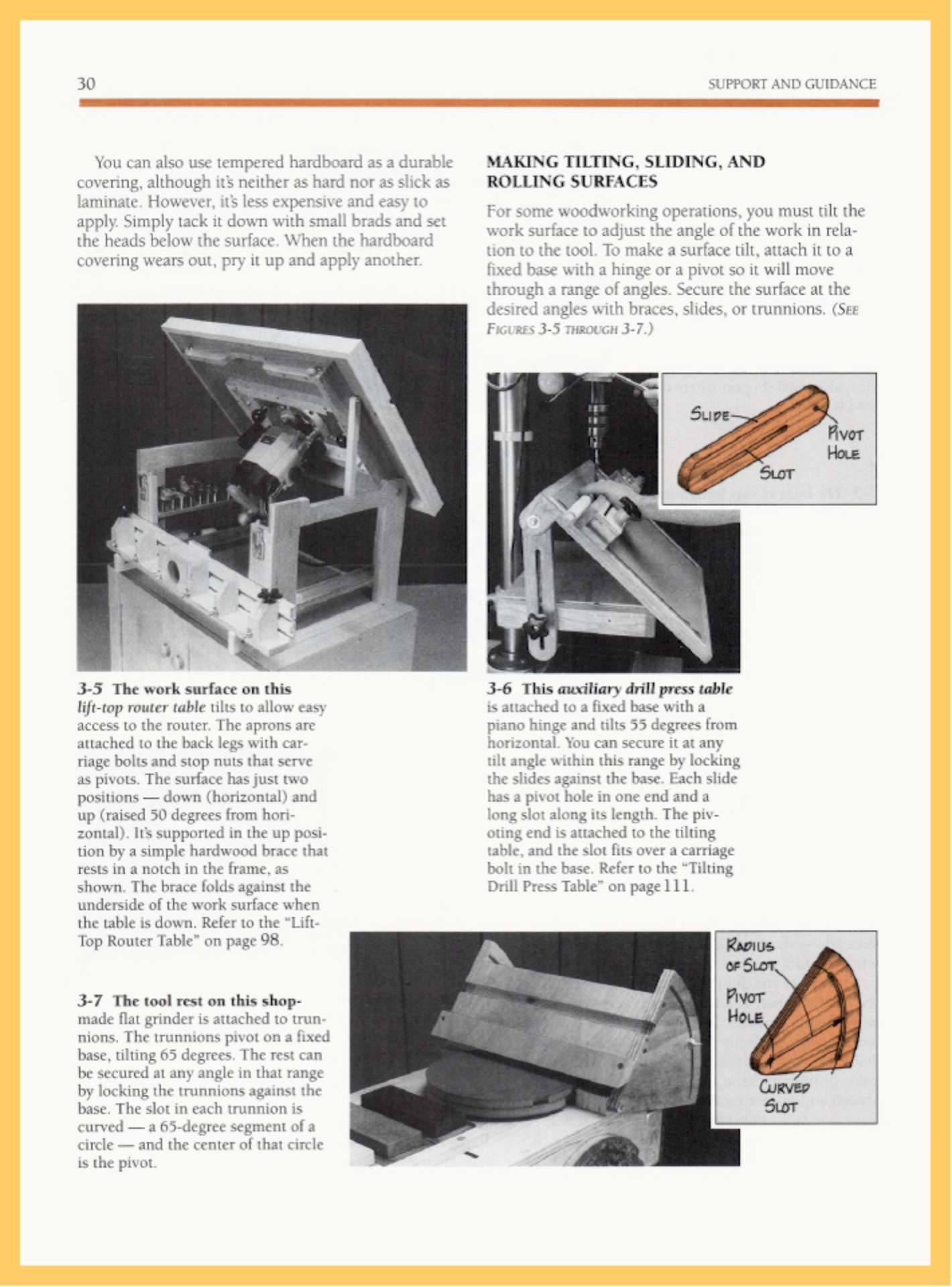

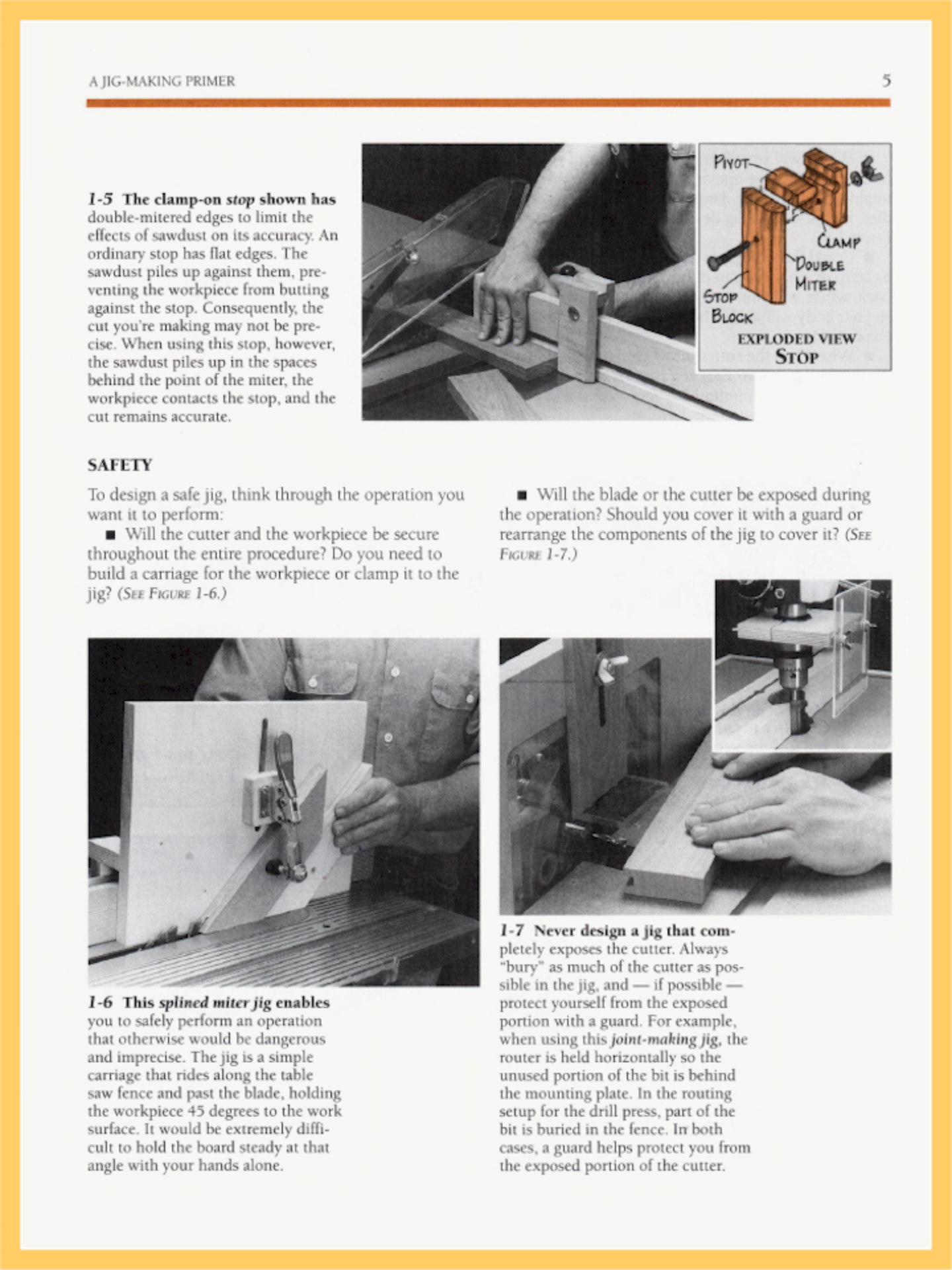

No matter how well your shop is equipped, jigs and fixtures extend the capabilities of your tools. In fact, many woodworking projects require a jig (to hold the work) or a fixture (to hold a tool) for successful completion. Nick reveals how to design these accessories, making them simple, accurate, and versatile. He covers jigs and fixtures for safety, dust collection, support, guidance, measuring, positioning, clamping, assembly, and more. And he includes plans for over 60 of the most useful accessories, including a Saw Sled, Support Stand, Lift-Top Router Table, Tilting Drill Press Table, Router Height Adjustor, and Circular Saw Guide, just to name a few. 128 pages, over 300 illustrations and photos in PDF format.

Files:    1 PDF
