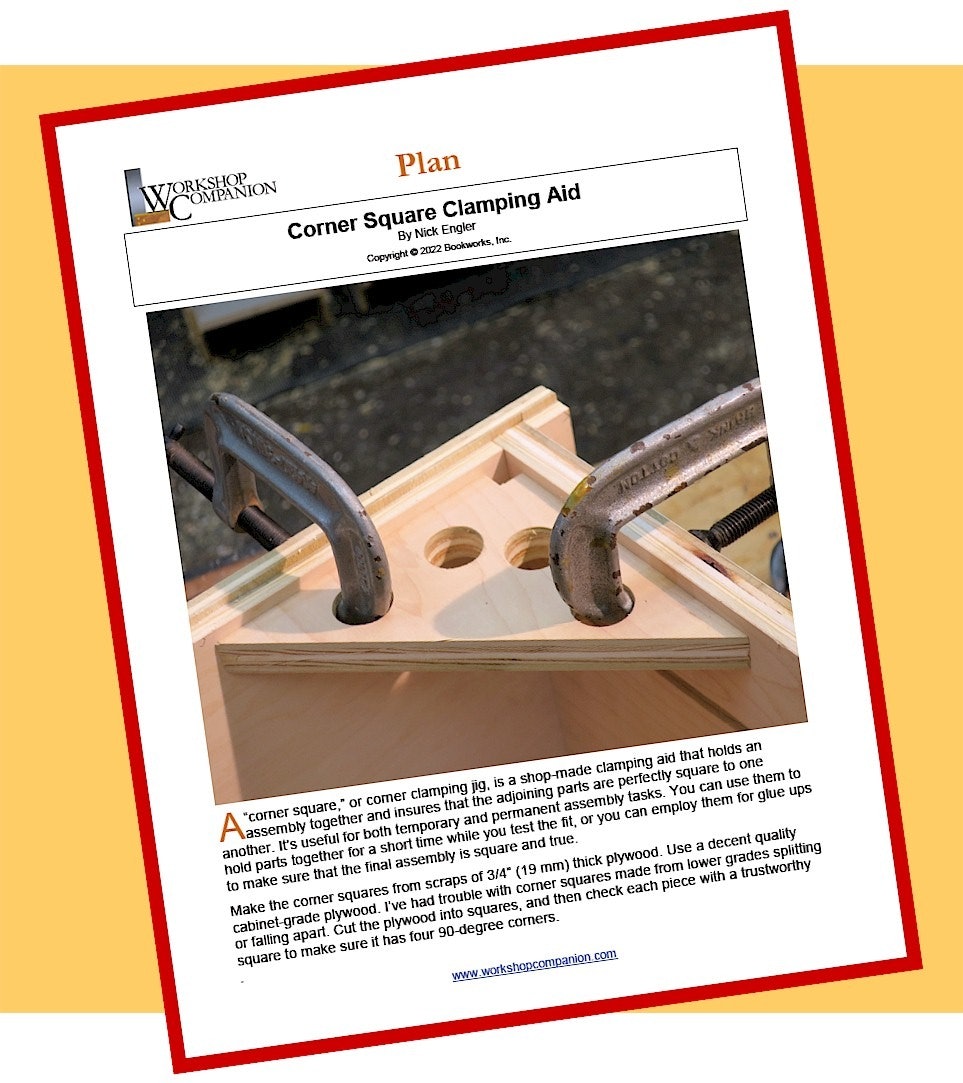

Corner Square Plan/Full-Size Pattern

Corner Square Plan/Full-Size Pattern

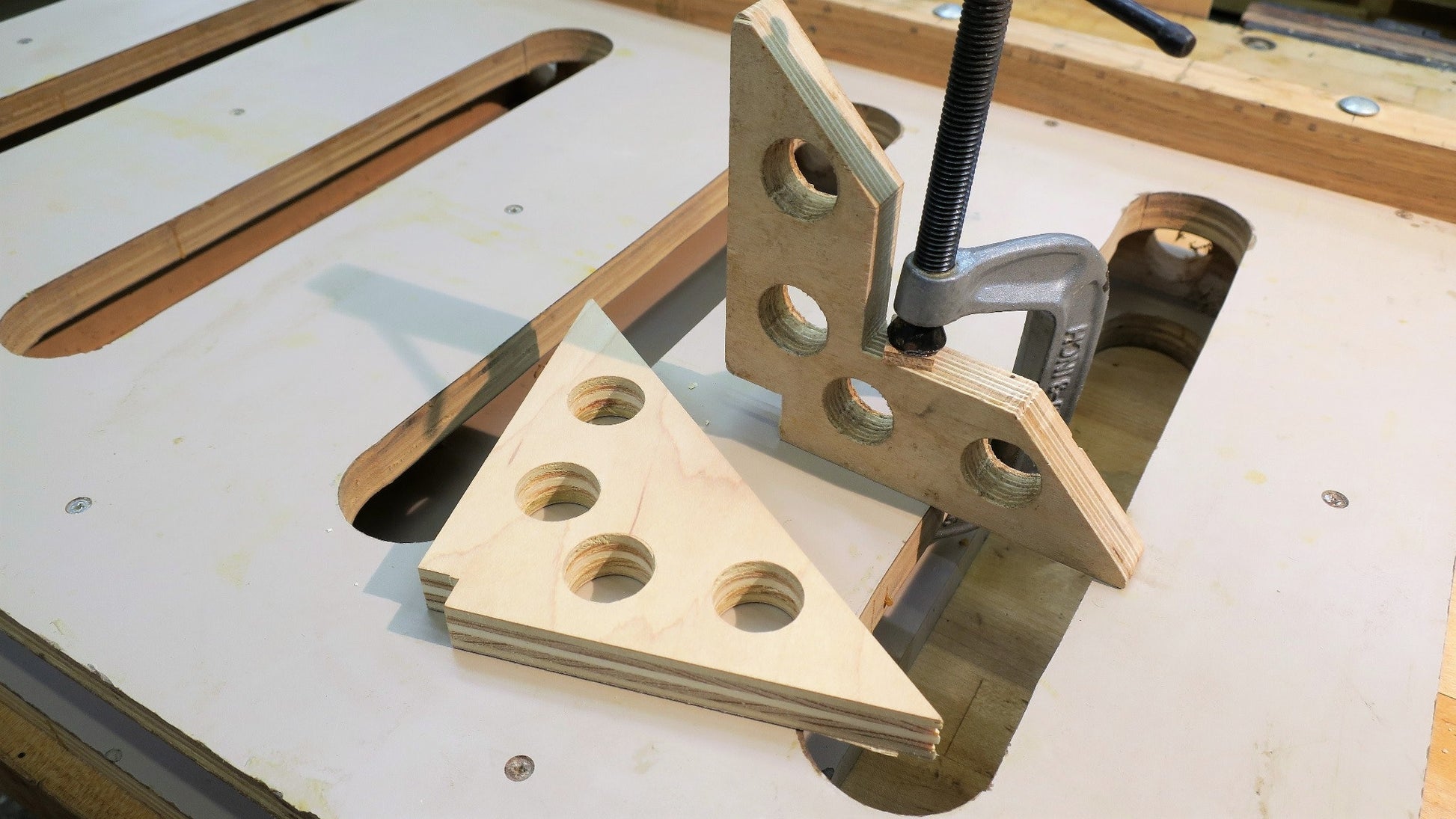

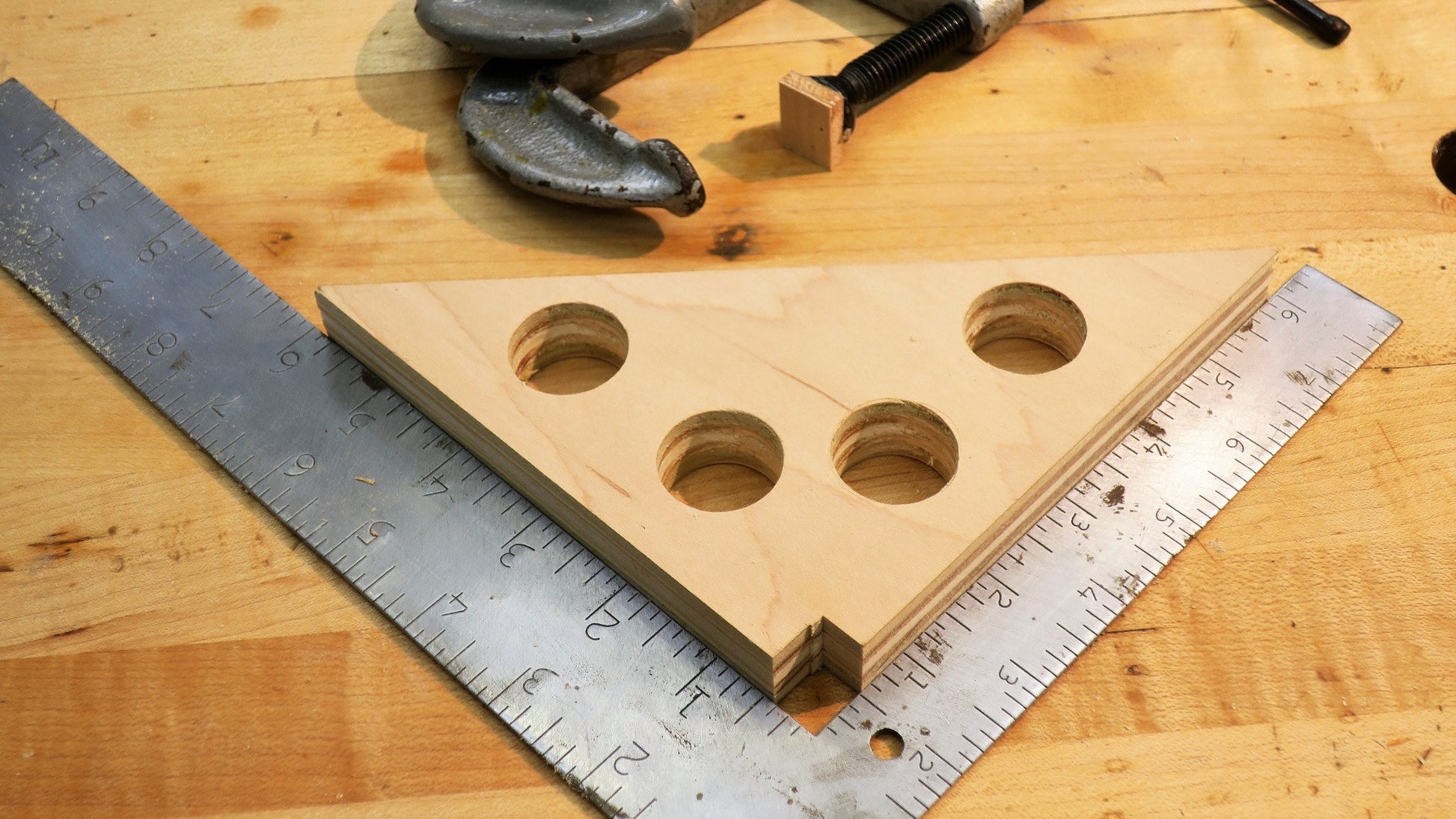

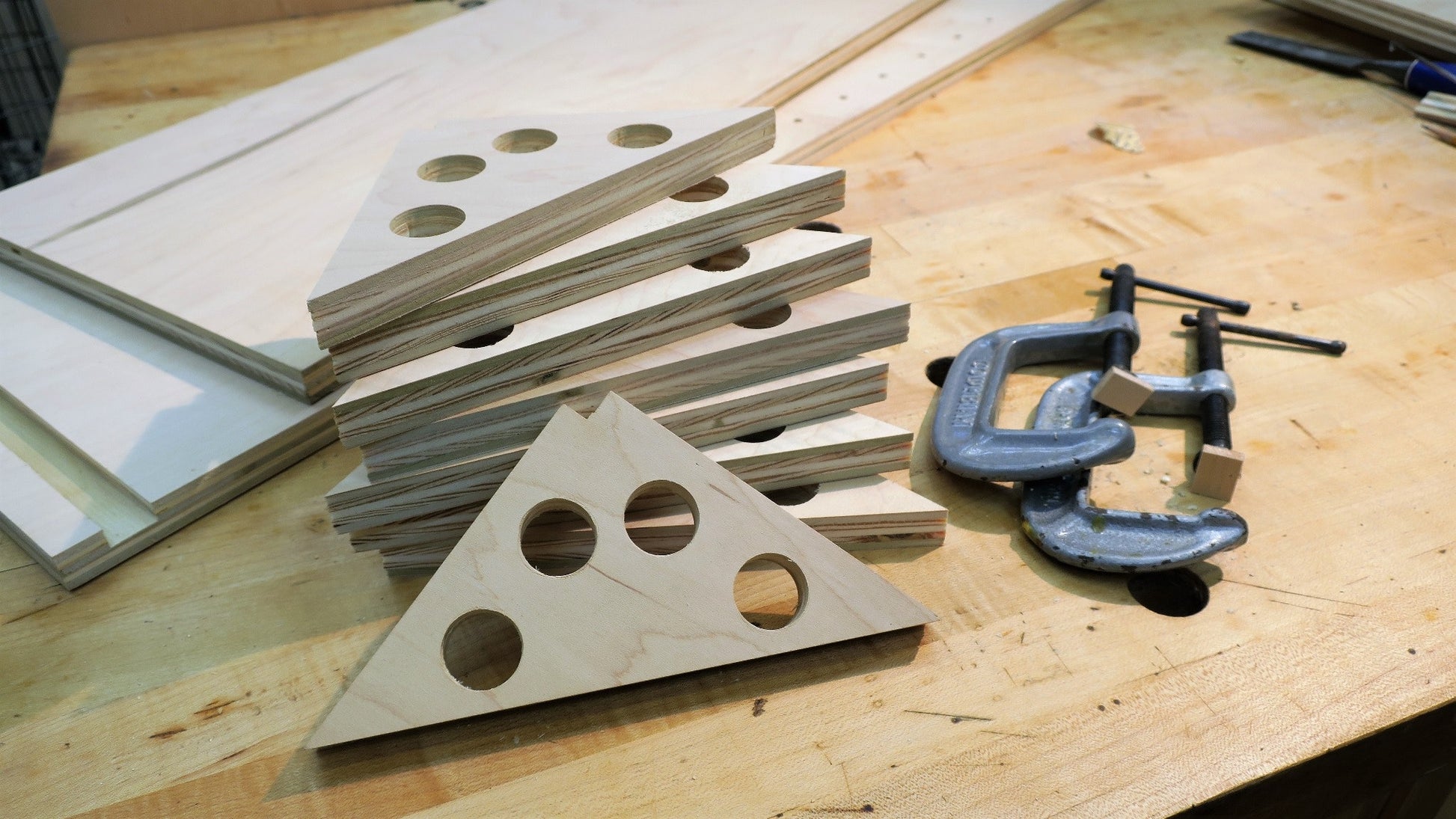

A “corner square,” or corner clamping jig, is a clamping aid that holds an assembly together and insures that the adjoining parts are perfectly square to one another. It’s useful for both temporary and permanent assembly tasks. You can use them to hold parts together for a short while while you test the fit, or you can employ them for glue ups to make sure that the final assembly is square and true. 3 pages in PDF format, including measured drawings in both English/Imperial and metric measurements; PLUS a FULL-SIZE template of a corner square to make it easy to lay out.

Files:    1 PDF
Regular price $1.99 USD
Regular price Sale price $1.99 USD
Sale Sold out
Shipping calculated at checkout.
